Description
2023+ Super Duty: Your 2023+ Ford Super Duty may have a leveling kit, exhaust, and other mods, but is lacking the style updates--Morimoto now has you covered! Available in red and smoked, the XB LED tail lights substantially improve the looks while retaining the necessary BLIS module and its proper aim for safety.Smoked or Red: Available in two housing colors to suit your tastes: smoked lens with a dark style or red lens for more of an OEM+ look. Either way, these don't look like anything else on the market, guaranteed. For improved side visibility, we've added a subtle glow emitting from a stylized vent in the bezel.Reverse Lights: We've increased the performance of the reverse lights over stock, but if that's not enough, the optional Backup Light Boost Bar adds an additional 2,700 lumens of darkness-destroying output via a simple plug and play connection on the tail light.BLIS Ready: For trucks with blind spot radars, we've designed these tail lights to ensure the factory module is easily transferred over and is properly positioned so there's no functional difference. Your blind spot monitoring will work exactly like stock. If your truck doesn't have the system, the tail lights will still work properly without a radar module fitted. Note: These lights are not compatible with trucks that have the OEM full LED tail lights (exclusive to Platinum / Limited trim levels).DOT Compliant: Both colors are designed in accordance with all DOT, SAE, and FMVSS108 standards with their integrated red reflex reflectors. Their intensity in all modes is brighter than stock with a broader visible range thanks to their optical design.Designed, engineered, and tested: In the USA by Morimoto, the XB LED tail lights are built with the highest standards, using the latest technology and raw materials available today, and are backed with an industry-leading five-year warranty.
Tech Specs
Functions: Parking Light, Brake, Turn Signal, Reverse
BLIS / Radar: OEM module swaps over without any issues
Wiring: Plug and Play (excl. trucks with OEM full LED tail lights)
Lens: Polycarbonate with UV-Shield hard coating
Note: These specifications are per pod / each!
Intensity (White): 1,750 Cd (Post Warm-Up) (17.5lux @ 10m)
Intensity (Yellow): 1,225 Cd (Post Warm-Up) (12.25lux @ 10m)
Input: Proprietary Overmolded Deutsch DT 2-Pin
Input Voltage: 9-18V DC
Power (stabilized): 42w
Current: 3.2A @ 13.5V DC
Peak Luminosity (raw): 3,000lm
Dimensions: 82mm W, 67mm H, 60mm D
Hardware: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
What's Included

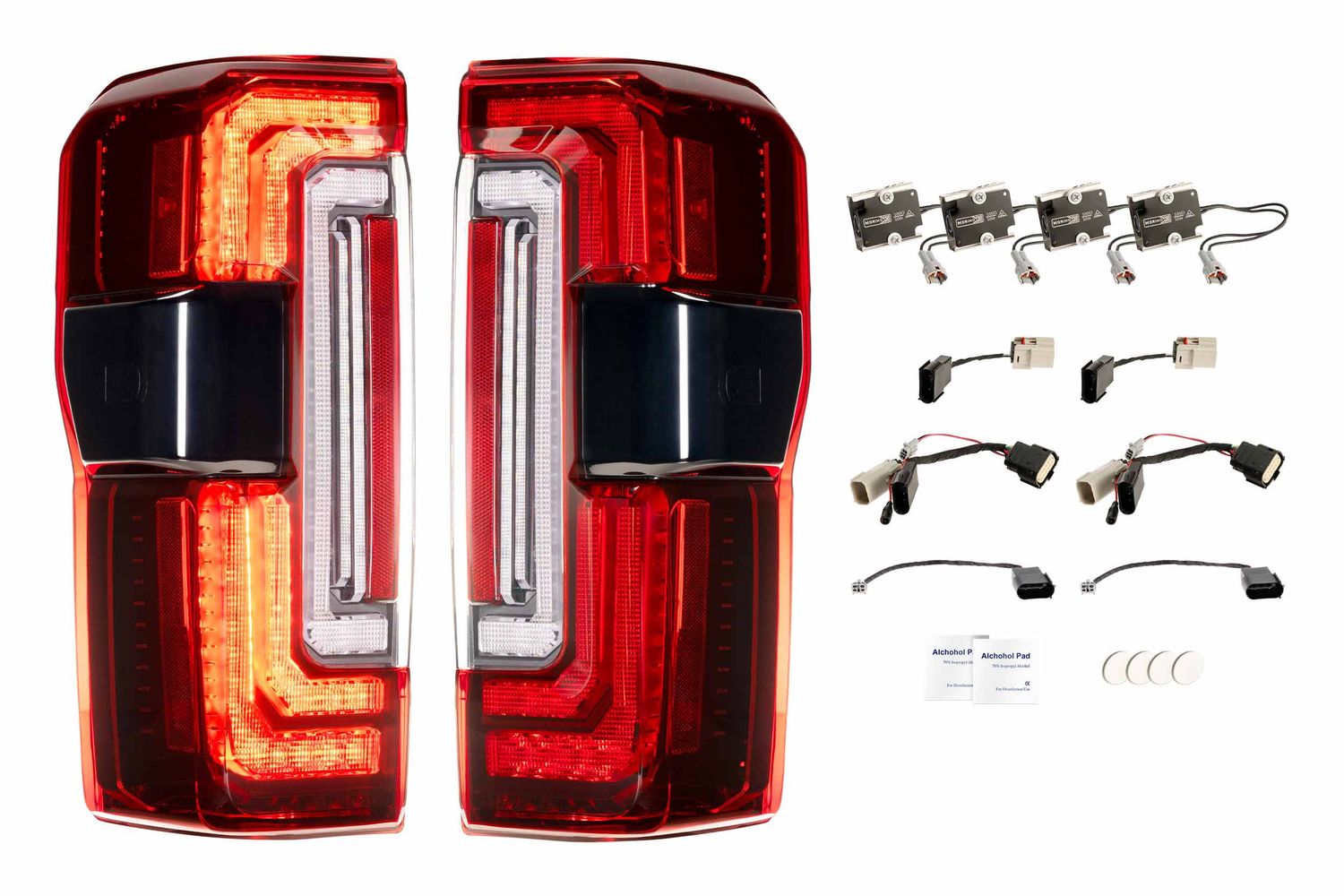

Tail lights: One Pair 2023+ Super Duty XB LED (1x Driver Side / LH Tail light, 1x Passenger Side / RH tail light)
Accessories: 4x Magnet Mount Resistors, 4x Steel Magnet Mount Plates, 2x Tail Light Harnesses, 2x Resistor Harnesses, 2x Halogen Reverse Harnesses, 2x Alcohol Pads
Compatibilities
Ford Super Duty (F-250, F-350, F-450): 2023+** (XL, XLT, Lariat, King Ranch, Tremor)
**Trucks with Full LED Tail Lights: Not Compatible
Replaces Ford Part Numbers: PC3B-13B504-A, PC3B-13B505, PC3Z-13405-D, PC3Z-13405-E, PC3Z-13404-F, PC3Z-13404-C, PC3B-14D189-C, PC3Z-13405-B, PC3Z-13B504-AG, PC3Z-13404-D, PC3Z-13B505-BG
Boost Bar: Plug and Play with optional Morimoto Backup Light Boost Bar
NOTE: These lights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility with trucks outside of North America.
Prop65 Warning
Yes
DOT Compliant
Yes
Install Guide
Download Install Guide
