Description
Special: The 20-24 Silverado HD is one of the most cool Heavy Duty trucks on the road today. What's not to like? The thing is a beast. Well--aside from the basic reflector headlights. If you've got big bucks burning a hole in your pocket, then the high-end XB headlights from Morimoto are a no brainer. If, however, your brain is telling you to save some dough while accomplishing the mission then go for the new XB Hybrids for your Chevrolet Silverado HD.Bang for the Buck: The XB Hybrids share many of the same core components developed for the top of the line series from Morimoto, without some of the features that make them considerably more expensive. That said... the Silverado HD Hybrid LED headlights are hardly a compromise. True reflector optics for the DRL. Killer light output. Good Looks... all wrapped up inside of an OEM-grade housing and backed with a solid five-year warranty. Compared to the more expensive Morimoto XBs, these use two projectors (instead of three) and use the standard incandescent bulbs for the turn signal (rather than it being integrated into the daytime running light strip). High Performance: When it comes to light output, these Silverado HD headlights surely will not disappoint. Not all Chevrolet guys are all about the bling-- light output is important too--and there is no lack of luminosity here. The Hybrids have a powerful, wide, and bright LED low beam projector, and a dedicated led high beam projector too. their optics were specially developed just last year specifically for use the hybrid lineup to produce an amazing beam pattern despite the affordable price point. Unlike other "headlight upgrades" that look decent, these look great, and will most definitely make driving in the dark a pleasure. Bring on the night! DOT Approved: for the ladies and gents that care about street legality, their dual LED projector optics meet all SAE, DOT, and FVMSS108 regulations. They come out of the box aimed to factory specs, and are also fully adjustable for those of you with lifted trucks. Plug and Play: When it comes to wiring, it doesn't get much easier than this. The Hybrid headlights are designed to work on your new Silverado HD without any modifications. They will plug into the factory multi-pin connector for the stock headlights, and will work seamlessly without any issues at all. Since they re-use the stock incandescent turn signal bulb, you don't have to worry about adding resistors or any of that nonsense to avoid hyper flashing either. You will however have to add one cable, which comes included, to power the DRL--but that's plug n play with one of the slots in your fuse box. No big deal.
Tech Specs
Low Beam Performance: +110% (420lux [Halogen] to 880lux)
High Beam Performance: +128% (1060lux [Halogen] to 2420lux)
Traffic Pattern: LHD Only
Functions: DRL (White), Turn, Parking, Low, High
Bezel Color: Gloss Graphite
Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic: Kuria Optic Bi-LED
UV Coating: Momentive UVHC3000
Relays: 2x Triple Sealed 40A M-Spec Relays
Switch: Normally off M-Spec w/ Amber backlight
Outputs: 6x DT06-2 Pin
Output Wiring: Insulated 12 AWG Copper
Inputs: 12V+/- Ring Terminals
Input Wiring: Insulated 10 AWG Copper
Power: Up to 5A Per Output
What's Included

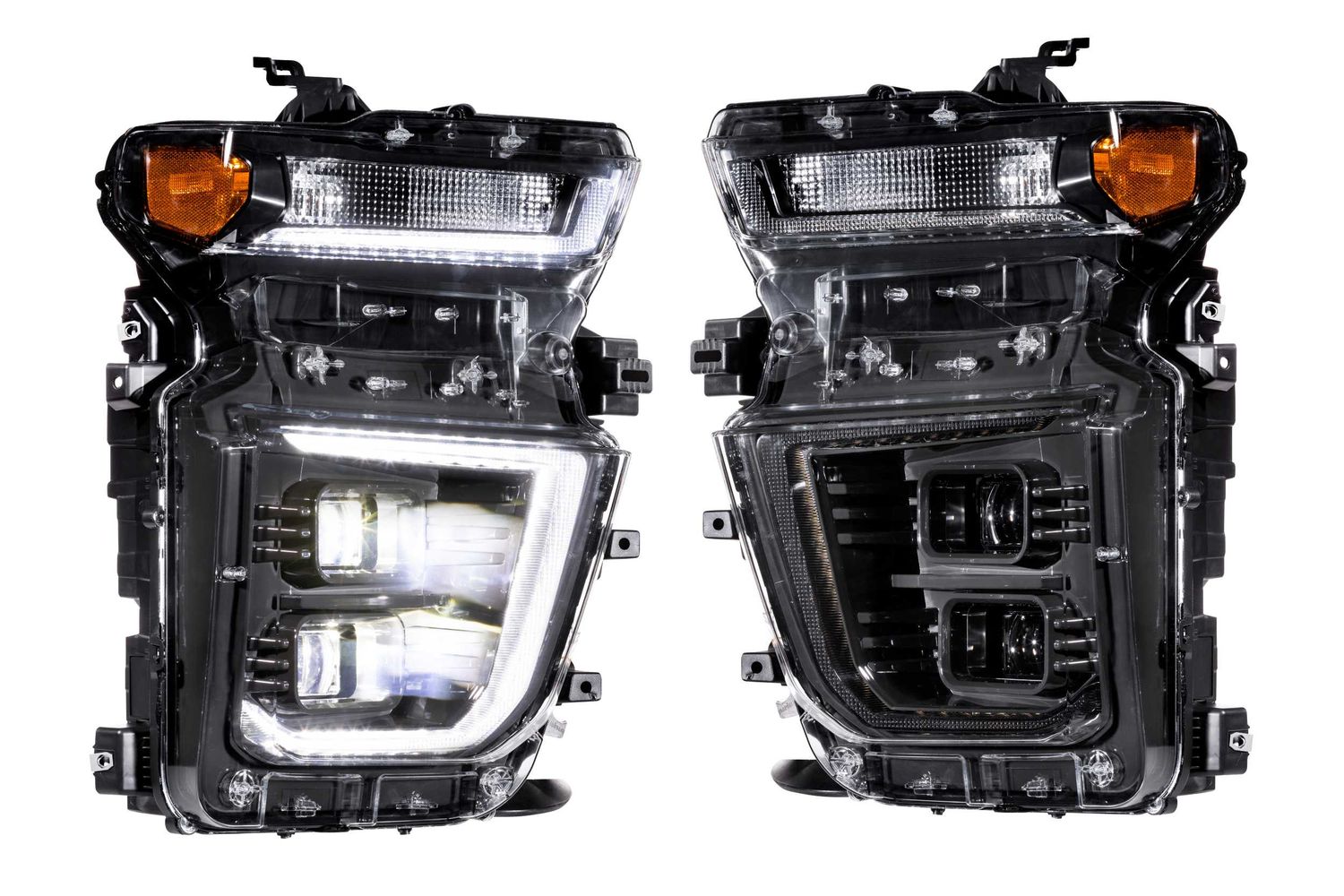

Headlights: 2x (One Pair) 20-24 Silverado HD XB Hybrid LED Headlights
Wiring: Plug and Play Harness, Fuse Tap
Warranty: Five (5) Years
Compatibilities
Chevrolet Silverado HD: 20-24* (*2024 LT, Custom, or Work Truck require optional LF546H harnesses. Not compatible with 2024 High Country, ZR2, or LTZ trucks)
Replaces GM Part #: 84738616, 84738617, 85149467, 85133185, 85133187
NOTE: Canadian trucks may need to disable OEM DRL. These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
Prop65 Warning
Yes
DOT Compliant
Yes
Install Guide
Download Install Guide
