Description

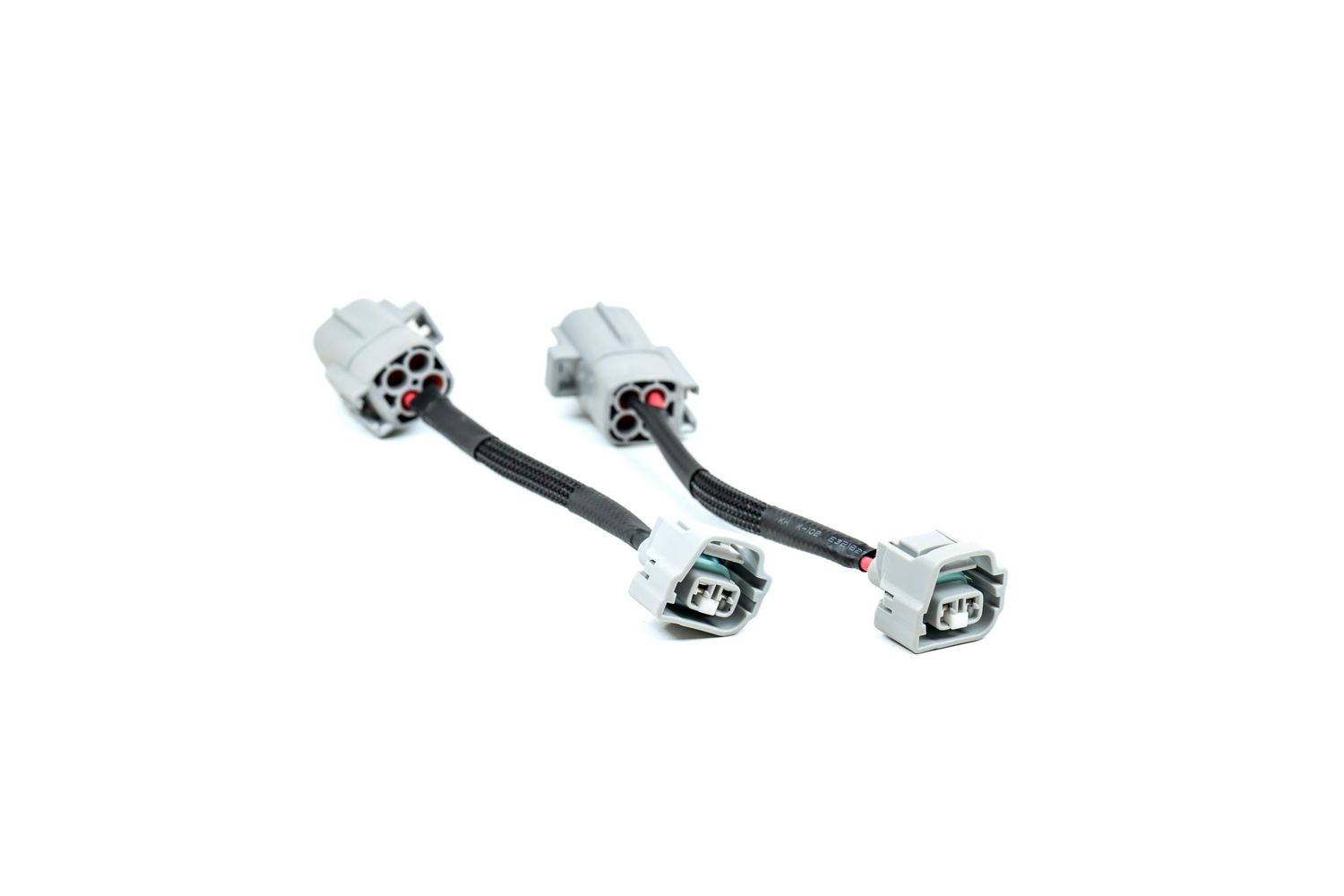

4Runner Adapters: For 2021+ Toyota 4Runners with OEM LED Low and Halogen High Beams, these adapters ensure proper fitment and function of the Morimoto XB LED Headlights. If your truck has factory LED high beams, use LF531H instead.
Tech Specs
Input: Toyota OEM
Outputs: For Morimoto XB LED Lights
Tech Specs: of XL Model
INTENSITY: 4,900lm
POWER: 40w
CURRENT: 2.9A @ 12V DC
DIMENSIONS: 3.07in x 2.77in x 3.07in
WEIGHT: 12oz
LIGHT COLOR: 5000K (Pure White)
MATERIAL: Hard Coated Polycarbonate (Lens), Anodized Aluminum (Housing), Billet Aluminum (Bezel), Stainless Steel (Hardware, Bracket)
COMPLIANCE: IP69K, IK10, MIL-STD810G
What's Included
Headlights: 2x (One Pair) 14-24 4Runner White XB LED Headlights
Wiring: Plug and Play Harness, Fuse Tap
Warranty: Five (5) Years
Compatibilities
Toyota 4Runner: 2014-2024*
*Note: 2021-2024 trucks require optional adapters. 2021 trucks (except Limited, Nightshade, and TRD Pro) use LF531H-2 adapters. 2021 Limited, Nightshade, and TRD Pro trucks use LF531H adapters. All 2022-2024 trucks use LF531H adapters.
Note about DRL Tap: Some 2020+ models cycle the injector circuit on without the vehicle in use. In these instances, use the IGN2 Fuse.
Replaces Toyota Part #: 81170-35571, 81130-35541, 8117035571, 8113035541
NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
Prop65 Warning
Yes
DOT Compliant
Yes
Install Guide
Download Install Guide
