Description

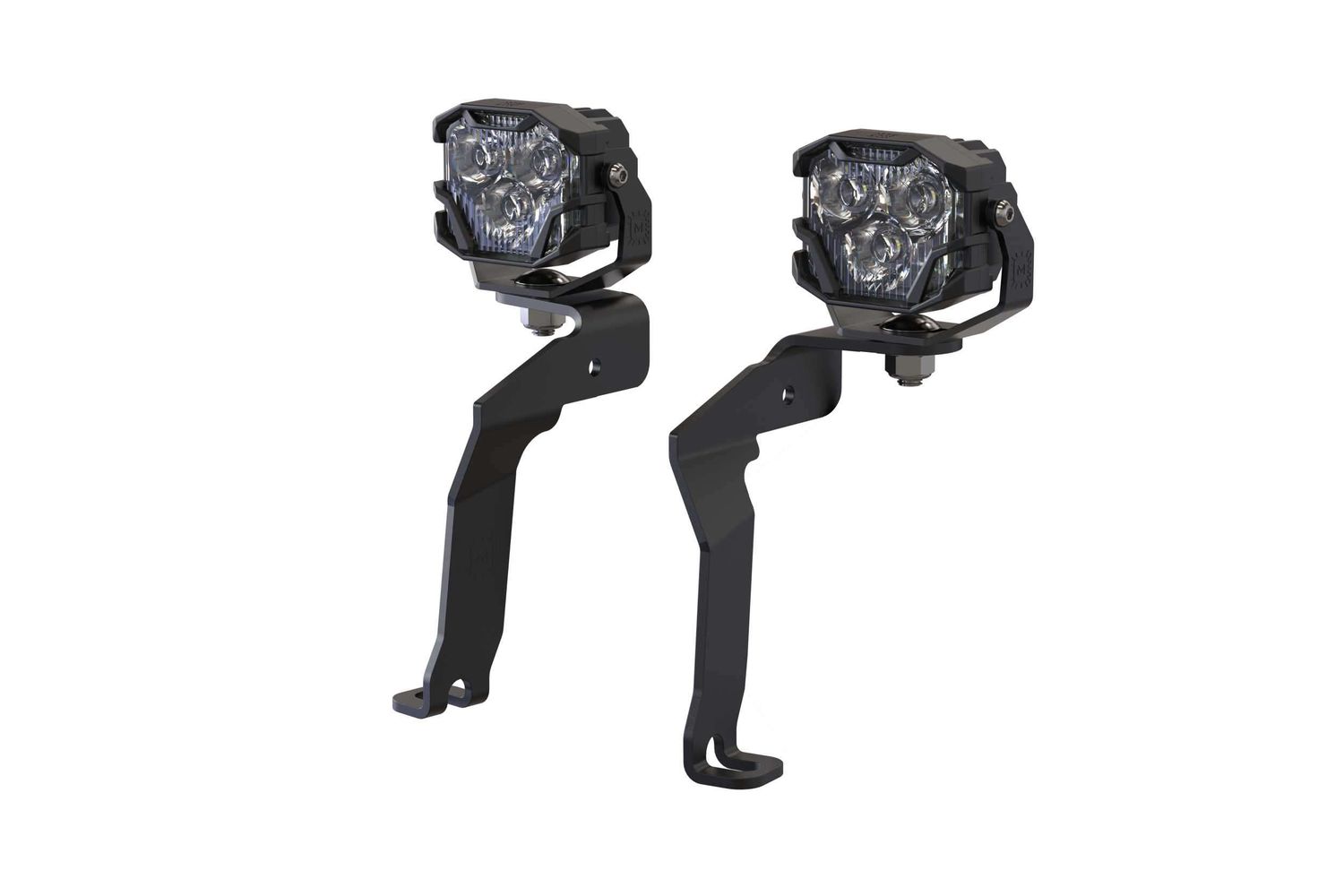

Bolt on Brighter: The Morimoto 4Banger A-Pillar LED system is the perfect solution for more light, aimed exactly where you want it. From long-range spot-lights for high speed driving to ditch lights to illuminate the side of the road, our A-Pillar kit is all about versatility. Select a set of high performance 4Banger LED pods in your choice of beam pattern, pair that with the brackets to make installation a breeze, and power it properly with our switched wire harness. Engineered Fitment: Morimoto's A-Pillar kit for the 2021+ Ford F-150 has been through numerous rounds of design, prototyping and testing directly on the truck to ensure perfect compatibility. Everything lines up with pre-existing mounting points to create an installation that is truly modification-free. Guaranteed. Yes, we agree this is a basic requirement, but you wouldn't believe the poor fitment we encountered from other well-known brands during development. It was mind blowing. Branches Beware: Each bracket is laser cut from 304 stainless steel, then powder coated. Put simply, the side mirrors on your F-150 will rip off way before our A-Pillar kit even flexes a muscle. Wiring & Cable Management: No sloppy wiring allowed. We have incorporated several mounting locations and cable routing clips on the stem of the bracket to direct the input wiring from your LED pods down into the engine bay. From there, you can plug n play with Morimotos switched relay wire harness for a clean and reliable install.
Tech Specs
Peak Intensity (cd): 1,225 Cd (Post Warm-Up) (12.25 lux @ 10m)
Input: Integrated Deutsch DT 2-Pin
Input Voltage: 9-18V DC
Power (Stabilized): 42w
Current: 3.2A @ 13.2V DC
Peak Luminosity (lm)(raw): 3,000lm
Color: 2700K
Light Source: 3x Osram HX Boost (5700K)
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
IP Rating: IP69K (Dust / High Pressure Water Resistant)
INTENSITY: 1,750 Cd (@20 Min / 21C Ambient) (17.5 lux @ 10m)
INPUT: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
INPUT VOLTAGE: 9-18V DC
POWER (STABILIZED): 42w
CURRENT: 3.2A @ 13.2V DC
PEAK LUMINOSITY (LM)(RAW): 3,000lm
DIMENSIONS: 82mm W, 67mm H, 60mm D
HARDWARE: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
Color: 5600K
Light Source: 3x Osram HX Boost (5700K)
What's Included
Ditch Light Brackets: 2x (One Pair) Morimoto Brackets (BAF067 / Ford F-150)
Hardware: Stainless bolts & plastic cable clips
LED Pods: 2x (One Pair) Morimoto 4Banger
Wiring: 1x Morimoto Switched Relay Harness
Warranty: Limited Lifetime
Compatibilities
Vehicles: Ford F-150 (21+)
Prop65 Warning
Yes
DOT Compliant
Yes
Install Guide
Download Install Guide
