Description
Forget: about 5-pin relays and complicated custom wiring! Morimoto makes it easy with the new XChange LED drivers that allow users to easily achieve "daytime running light" or "switchback" functionality for any accessories operating on 12V. Daytime Running Lights: Simply connect the [9006 female] DRL-output to your Angel Eyes, LED DRLs, (or whatever else you want). Then feed a constant 12V into the white/black wires and tap into your low beam circuit with the yellow input wire. When the car turns on, so will your DRL's. When you turn the headlights on, the DRL's will automatically shut off. Switchback Function: Connect the white/black output to your white angel eyes. Connect the yellow/black output to your amber angel eyes. Connect the white/black input a 12V constant, and the yellow/black input to your blinker circuit. With the car running, the white angel eyes will be on. When the blinker starts, the white angel eyes turn off and the amber will start blinking. When the blinker stops, the white angel eyes will automatically turn back on. Universal: Despite the examples above, this Morimoto switchback module has a wide variety of uses, from angel eyes, to LED strips, to daytime running lights, to fog lights. Anything that runs on a 12V input can conceivably be used with the XChange LED drivers. Quality: Housed inside of an attractive black extruded aluminum housing; the circuit board is covered in conformal coating to protect from moisture damage. Each output is setup with a sealed 9006 Female connector to keep the connections from corroding.
Tech Specs
INPUT TRIGGER #1: T-Tap
INPUT TRIGGER #2: T-Tap
GROUND: T-Tap
OUTPUT #1: 9006 Female
OUTPUT #2: 9006 Female
THICKNESS: 7.5mm (stretch to thin)
LENGTH: Approx 4 meters
MATERIAL: Automotive Grade Butyl Rubber
COLOR: Black
ORIGIN: Yokohama, Japan
What's Included

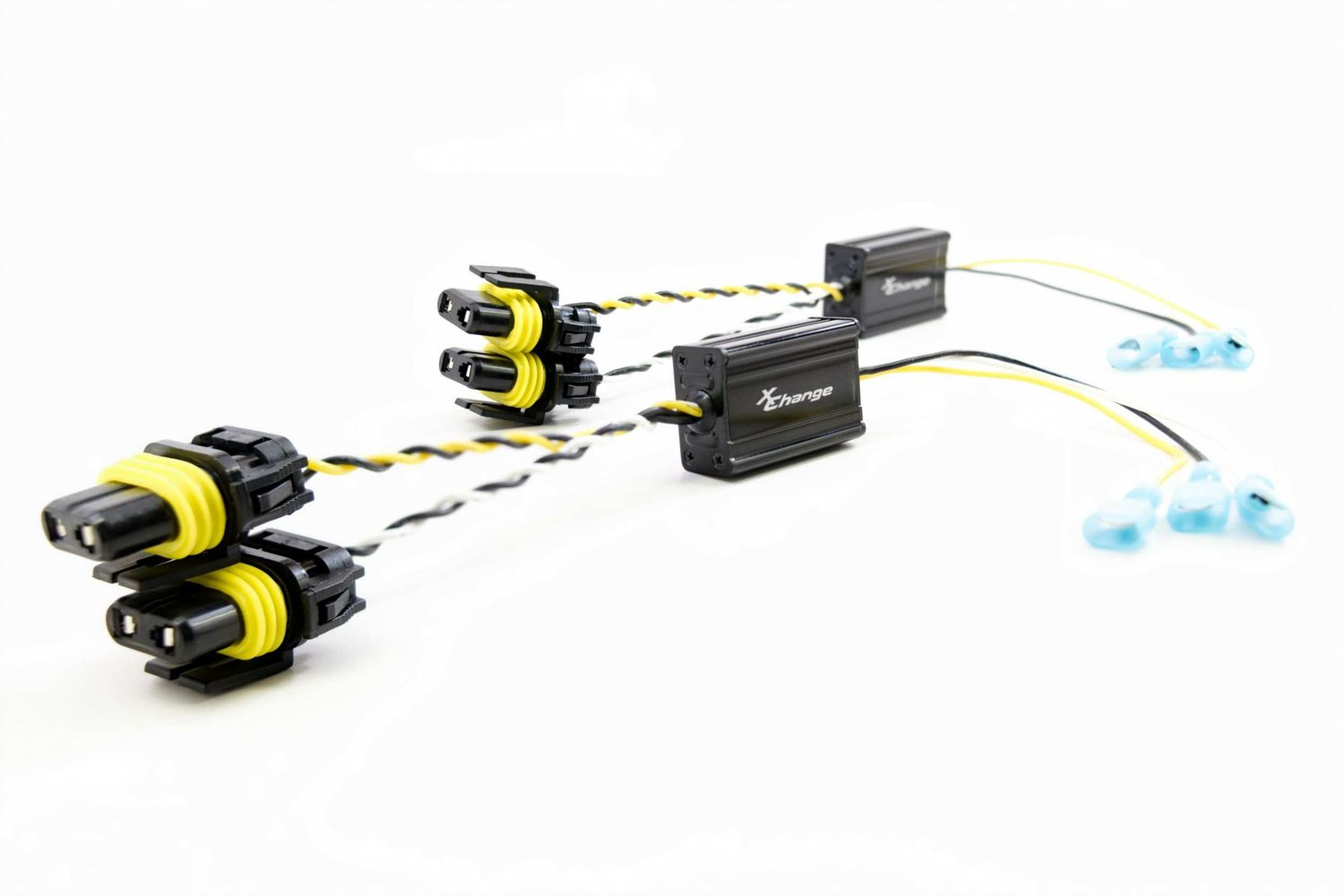

Module: 1x Morimoto XChange Switchback Driver
T-Taps: 6x Blue T-Taps
Warranty: 2 Years
Compatibilities
HID SYSTEMS: With Relay Harness
RUNNING LIGHTS: 12V LED
LED HALOS: All Brands
LED STRIPS: All Brands
Prop65 Warning
Yes
DOT Compliant
Yes
Install Guide
Download Install Guide
