Description

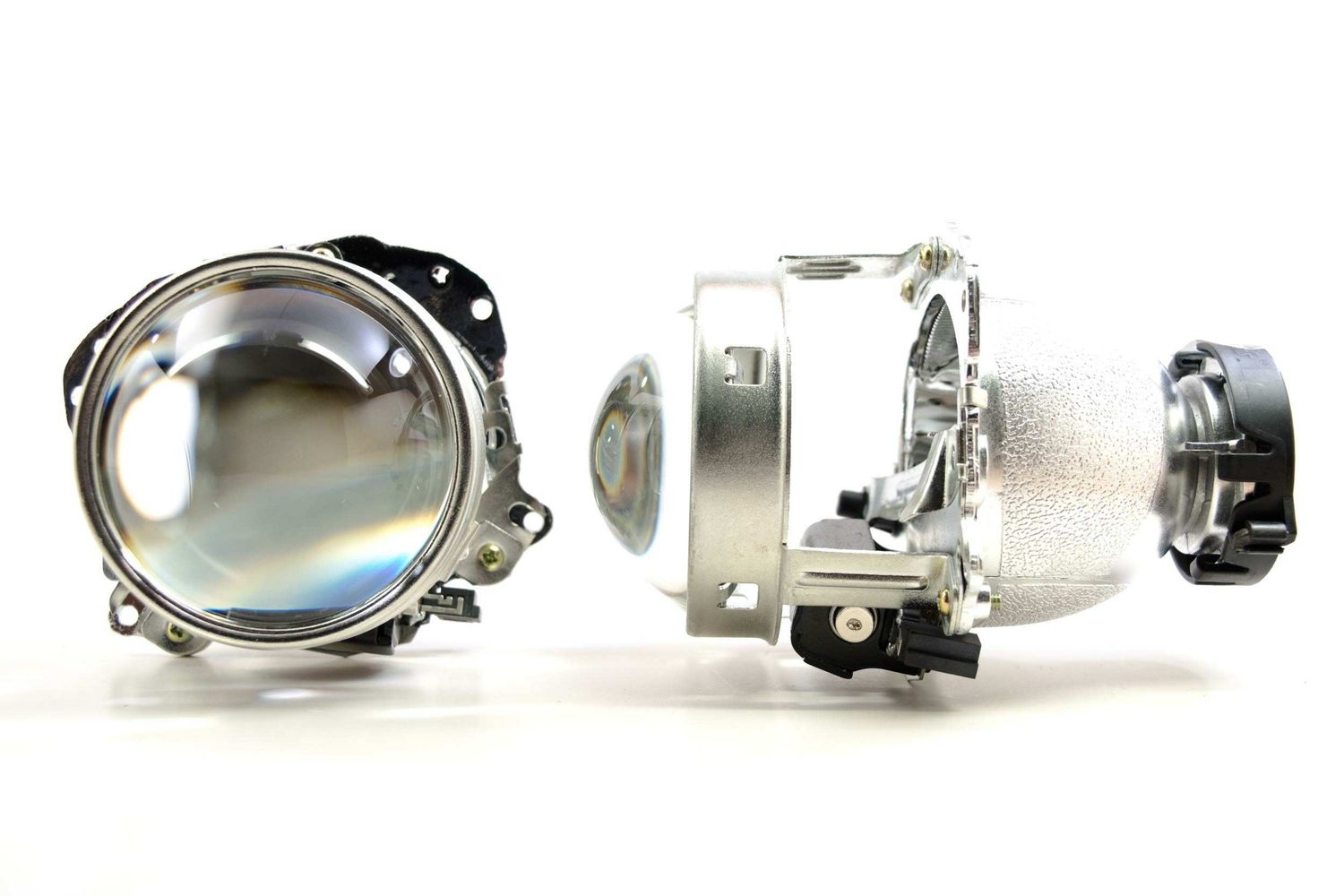

Evolution: The original Hella "E55" design is the most widely used original equipment projector in the world. So what? It's a good design, but the Morimoto EvoX-R 2.0 is better in every way. So whether it's a new retrofit or a direct swap out for the old; the Morimoto EvoX-R 2.0 is a winner. All-Rounder: Morimoto's EvoX-R 2.0 is derived from the Mitsubishi Lancer Evo X Original Equipment design. It's the best option for upgrading cars that came with older 3" Hella bi-xenon HID projectors and it's also ideally shaped for a traditional retrofit too. 2.0 Performance: Coming standard with a 3" clear lens and a mirror finish reflector bowl, the Morimoto EvoX-R 2.0 manages to produce the MOST INTENSE hot spot of any projector in the Morimoto lineup. If you're looking for the most hardcore down-the-road performer, look no further. Performance like this is not possible with threaded-shaft style projectors! Cross Compatible: Their bolt pattern is identical to older Hella 3" halogen, xenon, and bi-xenon HID projectors - so can be used as a direct bolt on upgrade in many OEM or aftermarket housings that use these designs. The bulb holders are also compatible with D1S, D2S, and D3S bulbs.
Tech Specs
Dimensions: 96mm H, 108mm W, 157mm D
LENS DIAMETER: 3.0in
Function: Bi-Xenon
Traffic Pattern: LHD
STRENGTH: 900psi
SET TIME: 5 Minutes
CURE TIME: 1 Hour
What's Included
Projector: 1x Morimoto EvoX-R 2.0 LHD Projector
Wiring: 1x 9006 Male Input Pigtail
Warranty: 3 Years
Compatibilities
AUDI: 1997-2011 A6, 2002-2009 A8
BMW: 2001-2002 E39, 1999-2005 E53, 2003-2006 E60 Xenon Non-AFS
CHRYSLER: 2008-2015 Grand Voyager
FORD: 2009-2012 Fiesta w/ OE Halogen Projectors, 2009-2013 F150 w/ OEM HIDs
LAND ROVER: 2001-2010 Range Rover w/ Hella Headlights
MERCEDES-BENZ: 2004-2010 CLS-Class, 2003-2012 E-Class, 2001-2005 ML-Class, 2006-2010 GL-Class, 2005-2010 R-Class
VW: 2001-2010 Passat (Halogen lights require minor trimming; Xenon lights require AFS plate mounted to EvoX-R)
OTHER APPLICATIONS: Universal (cars/trucks/motorcycles)
BULBS: D1S, D2S, D3S, D4S HID
SHROUDS: All Except 'Mini' styles
Prop65 Warning
Yes
DOT Compliant
No
Install Guide
Download Install Guide
