Description
Useful: Sometimes "this" just doesn't plug into "that" - When the industry standard for aftermarket lighting calls for mostly 9006 Female inputs, these adapters will come in handy. Go Direct: If your vehicle's stock headlight circuit is strong enough to power ballasts without a relay harness, these are the perfect solution for non-9006 headlight systems since almost all HID ballasts require a 9006 female input. Standard: These are standard equipment on all HD Relay harnesses which are sized for anything except for a 9006 input.
Tech Specs
WIRE THICKNESS: 14 AWG
LENGTH: Approx. 6in / 150mm
INSULATION: Braided TechFlex
Connector 1: PSX26W Male
Connector 2: 5202 Female
MODES: Strobe, Flash, Fade
PRIMARY FUNCTION: RGB
LIGHT SOURCE: Proprietary SMD LED
EXPECTED LIFESPAN: 50,000 hours
PCB WIDTH: 7mm
PCB THICKNESS: 3mm
DRIVER HOUSING: Anodized AL
DRIVER PROTECTION: Full internal Potting
COLOR WHEN OFF: Neutral White
CONNECTIONS: JST 4 Pin
What's Included

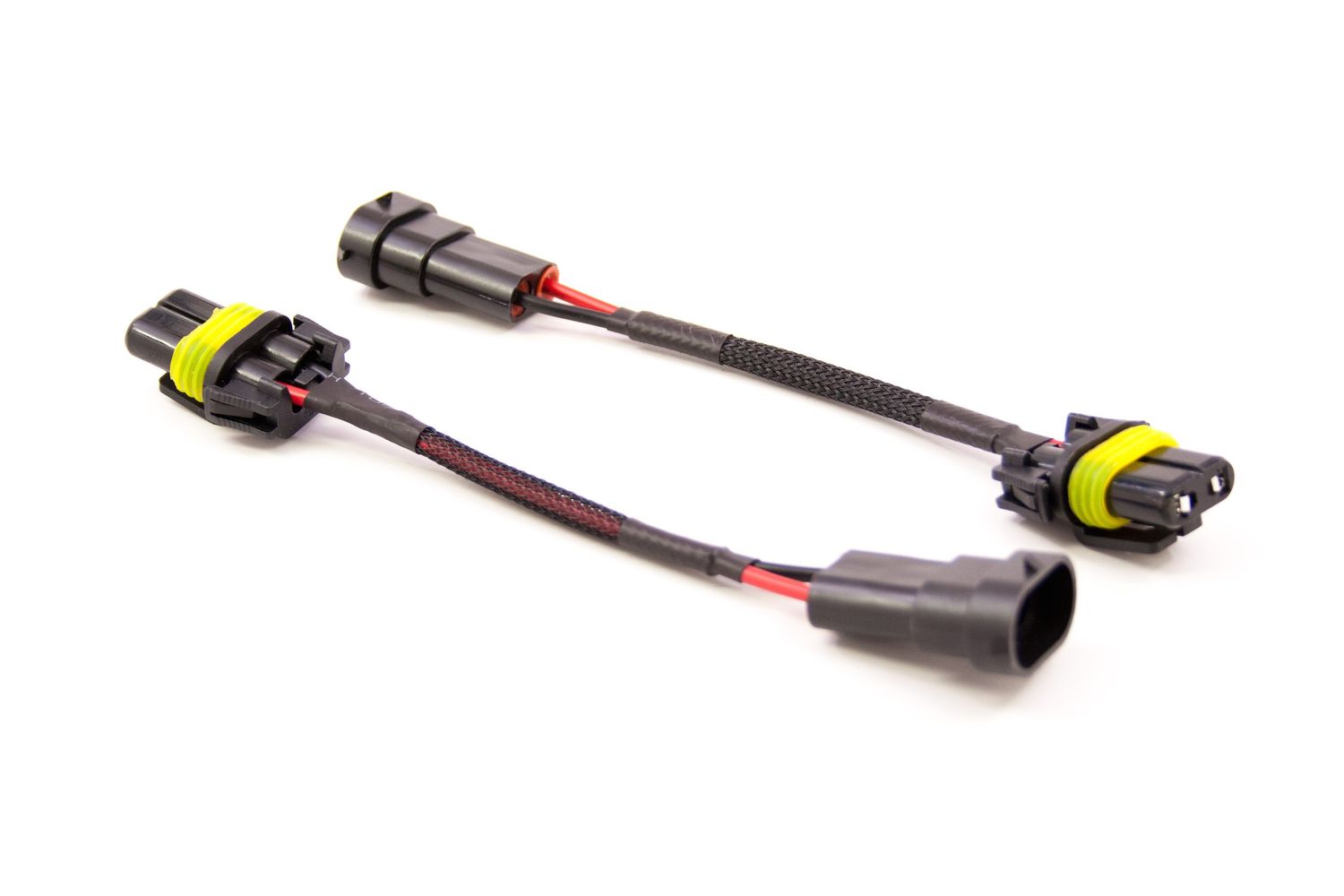

Wiring Adapter: 1x PSX26W Male to 9006 Female Adapter
Warranty: Two (2) Years
Compatibilities
INPUT TYPE: 5202 Female
OUTPUT TYPE: PSX26W Male
Prop65 Warning
Yes
DOT Compliant
Yes
Install Guide
Download Install Guide
