Description

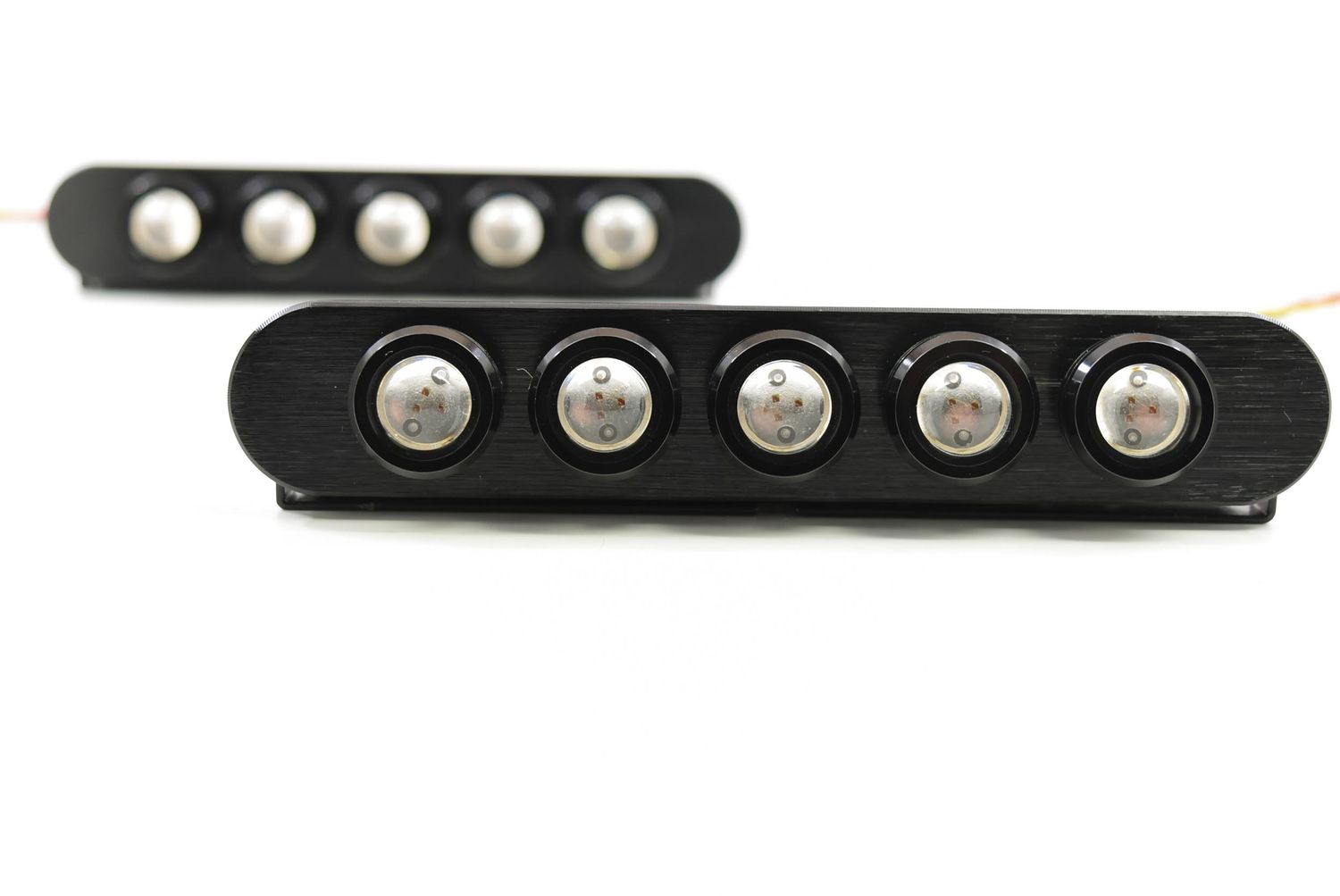

Brake Lights: This LED motorcycle brake light is so bright they can't be missed. The Morimoto 5Stop LED brake lights uses five strong 5W Red LED's to illuminate the rear-end of your bike and indicate to following traffic when you're slowing down. Safety: Is just as important as good looks when it comes to the motorcycles. Thankfully the 5Stop has both bases covered here, since these are a great, clean looking way to replace a big bulky tail light on a motorcycle - but also a very functional one with their dual-intensity circuit. Wiring: Is about as easy as it gets here. The Morimoto 5Stop brake light has a simple 3 wire input that will integrate/replace most pre-existing motorcycle tail light circuits. 12V+ for the normal running light. 12V+ for the bright/brake light, and a ground. Heavy Duty: Their CNC Machined, 6061 Aluminum body has been anodized with a beautiful gloss black finish for a stealth look once mounted. A low-profile mounting bracket and hardware is also included. The angle of the unit once mounted is also fully adjustable! Bomb Proof: The internal LED circuitry is completely protected against the elements with a hard acrylic potting compound. Damage from moisture, dust, or dirt is no threat.
Tech Specs
Material: Machined 6061 Aluminum
Intensity: 400lm Dim, 800lm Bright (Raw)
Input Voltage: 12-12V DC
Input: Bare Wire
Current: 0.42A @ 12V DC
Light Source: 5x 5w Nichia LED
BULB SIZE: D4S
Intensity: 3,200lm (est.)
BASE (TECHNICAL): P32D-5
RATED LIFESPAN: 2,500 Hours
Power: 35W and 55W
Color Rating: 4300K (Warm White)
55w Ballasts: +20% lm, -1000K Color (est.)
What's Included
Assembly: 1x Morimoto 5Stop Brake Light
Hardware: 1x Bracket w/ Mounting Hardware
Warranty: 3 Years
Compatibilities
INPUT RANGE: 12-24V
APPLICATIONS: Motorcycle Brake Lights
INPUT: 3 Wire (un-pinned)
Prop65 Warning
Yes
DOT Compliant
Yes
Install Guide
Download Install Guide
