Description
Triple Threat: The Morimoto 4Banger NCS Wide Beam is designed to comply with the latest SAE F3 regulation for a street legal fog light. The Morimoto 4Banger HXB Wide Beam sets a new industry benchmark for intensity. The Morimoto 4Banger NCS spot and combo will illuminate medium-to-long range distances unlike anything else in the aftermarket thanks to the laser boost. But what's better than a collection of the best performing beam patterns in the industry? The ability to combine three of them on the front end of your 2016-2021 Ford Raptor, of course! Engineered Solution: Thanks to the smaller than usual footprint of the 4Banger, we now have a powerful LED Pod light upgrade for the Raptor that fits properly and looks right. Other kits that are based on bigger LED pods stick out like a sore thumb. Not here. Morimoto engineers spent many hours hands-on in the garage during development of the 4Banger brackets alone. Repeated rounds of design, prototyping, and test fitting have spawned the most refined set of bumper brackets that a Raptor owner could ask for. Easy Setup: Everything is designed to bolt-on and plug-n-play. No modifications are required to your Ford Raptor or its wiring to install the 4Banger off-road lights in your bumper. Each kit includes all the necessary hardware and high-quality wiring harnesses to mount three LED pods and provide them with reliable power using an in-cabin switch.Fully Adjustable: These things are powerful, and while their wide beam pattern is perfect for use as a fog light, power is nothing without control. In addition to the side to side adjustability, the brackets also have +/- 6 degrees of vertical range so that you can dial in the aim and ensure every ounce of intensity ends up exactly where you want it. All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog -- the Yellow-output version will slay in sour weather. For HXB Spot and Combo models, Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather). Street Legality: With a standard -4 degree aim, the beam pattern produced by both the NCS and HXB Wide Beam models has been verified compliant with the latest SAE F regulation for use as a street-legal fog light. You can view those test reports in the Compatibility section below.
Tech Specs
Relays: 2x Triple Sealed 40A M-Spec Relays
Switch: Normally off M-Spec w/ Amber backlight
Outputs: 6x DT06-2 Pin
Output Wiring: Insulated 12 AWG Copper
Inputs: 12V+/- Ring Terminals
Input Wiring: Insulated 10 AWG Copper
Power: Up to 5A Per Output
IP Rating: IP68K (Dust / High Pressure Water Resistant)
Intensity: 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
Input Voltage: 9-18V DC
Power: 20w
Current: 1.5A @ 13.2V DC
Dimensions: 82mm W, 67mm H, 60mm D
Color: 5600K
Light Source: 3x Nichia NCSW131F (5700K)
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
IP Rating: IP68K (Dust / High Pressure Water Resistant)
What's Included

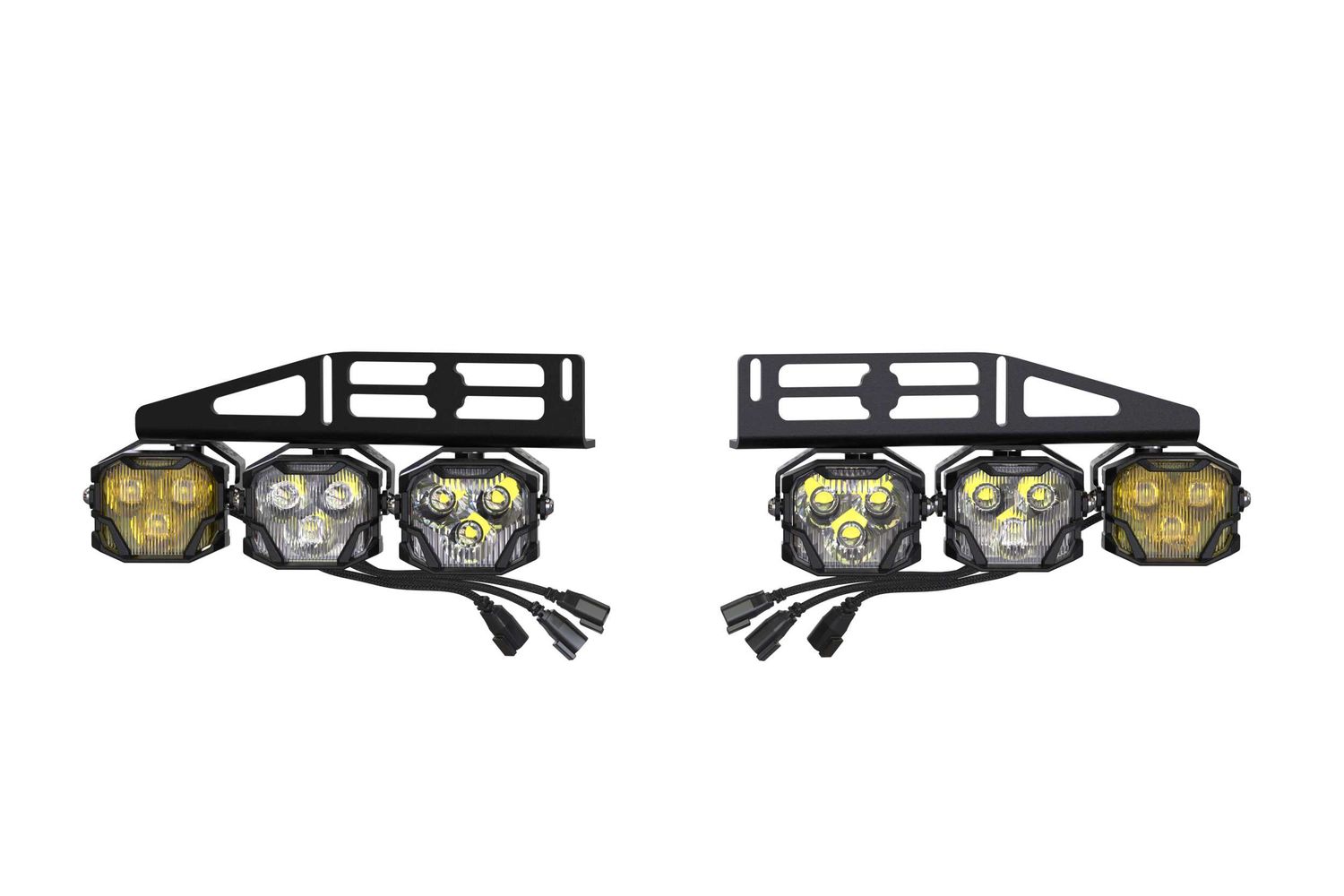

Fog Light Brackets: 2x (One Pair) Morimoto 4Banger (BAF024 / Ford Raptor)
Hardware: Complete Pack (Stainless Steel)
Wiring: Plug N Play Connection Kit
Warranty: Limited Lifetime
Compatibilities
FORD RAPTOR: 2017-2020
4Banger COMPLIANCE: Wide beam photometrics are SAE F 20 compliant
Prop65 Warning
Yes
DOT Compliant
Yes
Install Guide
Download Install Guide
