Description

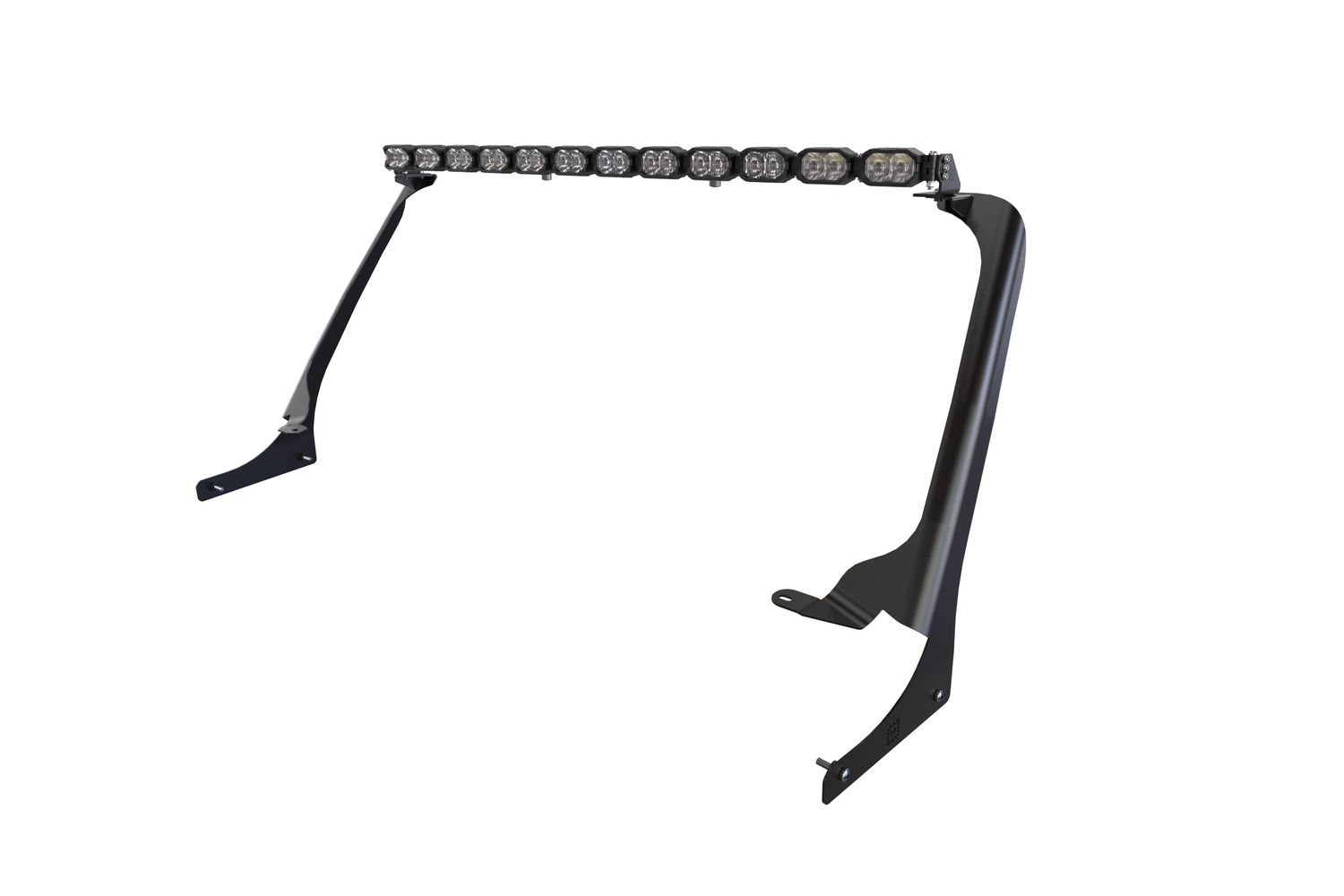

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. Our JL/JT roof-mount 2Banger LED light bar system continues that tradition as a turn-key LED light bar, where you spec the power. The color, and then you destroy the darkness. Mounting brackets and hardware for the Wrangler JL come standard, and a everything else needed for a complete double-row LED Light bar can be added as an option. 2Banger NCS and HXB: The 2Banger packs industry-leading performance into their compact footprint, making them the perfect platform for the 2Banger Bars. The NCS version provides maximum bang for the buck and out-performs most everything else in their class. The HXB version sits at the top of the performance totem-poll, produces maximum output. With the latest LED chips from Osram inside, each pod is a serious powerhouse of its own. Performance: The 2Banger bars are configured to pack some serious punch by pairing our combo, spot, and wide beam pods into a high output light bar. LucidShape and SolidWorks were used to optimize both optical and thermal performance around the most modern, lumen-dense LEDs from Nichia and Osram. With two performance tiers, white or yellow setup, there is a single row 2Banger bar to suit every performance need and driving style. Intensity and Coverage: The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The wide optics produce a very wide beam that drastically improves visibility off to the sides of the road. The spot beam Illuminates well into the distance and features a highly focused 5-degree hot spot, making it the perfect weapon for long range visibility. While each of these easily does the job on its own... nothing will compare to their coverage when combined. All Weather: The white-output version is ideal for maximum-visibility in the middle of the night. For those who desire optimal output in rain, snow, or fog, the Yellow-output version will slay in shady weather... and if you are ready to roll rain or shine, go with the white/yellow combo, where we suggest yellow optics that are ideal for nearfield visibility and white output for central illumination. Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 2Banger pods features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance. All 2Banger bar hardware is CNC machined from solid aluminum and then protected with a dual-layer anodized finish. Your roof rack will rip off your truck before the 2Banger bar fails. Power Up: The Morimoto 2Banger bar has been developed from the ground up to set a new standard in their segment, and the same goes for the wire harness that comes included. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder. DT06-2S female outputs with dual seals. Proprietary M-Spec push button switch with Amber-LED backlight is wired with a quick-disconnect for an easy install with upfitter switches on your Wrangler. The harness can be set up to control all pods together, or the inner and outer pods independently.
Tech Specs
Peak Luminosity (raw): 24,000lm
Intensity: 367,700 Cd (3,677 lux @ 10m)
Power (stabilized): 288.0w
Current (amps @ 13.5V DC): 21.33A
Peak Luminosity (raw): 10,800lm
Intensity: 356,100 Cd (3,561 lux @ 10m)
Power (stabilized): 162.0w
Current (amps @ 13.5V DC): 18.00A
What's Included
Windshield Brackets: 2x Brackets (One Left and One Right)
LED Pods: 12x Morimoto 2Banger (HXB Yellow: 4x Wide, 6x Combo, 2x Spot)
Bar Hardware: 2x Mounting Feet, 2x Middle Support Legs, 11x Pod-Links
Wiring: 1x Switched Power Relay Harness (BAF131H)
Hardware: 2x M6 Spacers, 4x M8x1.25 35mm SS Screws, 4x M6x1.0 12mm SS Screws, 4x M6 11mm SS Washers, 2x M6 18mm SS Washers, 2x M6x1.0 50mm SS Screws, 2x 5mm Spacers, 1x Rubber Cushioned Cable Clamp
Warranty: Lifetime Limited
Compatibilities
Jeep Wrangler JL: 2018+*
Jeep Gladiator JT: 2020+*
*Note: Not compatible with 4XE or 392 models due to a different cowl design.
Ditch Light Brackets: Fully compatible with Morimoto ditch light brackets (BAF036)
Prop65 Warning
Yes
DOT Compliant
Yes
Install Guide
Download Install Guide
