Description
Headlights: Evolutionary: A simple design refresh would have been easy, but that’s not what this is all about. The all-new XB Evo Hybrid headlights are a showcase of everything Morimoto is made of at a price that everybody can afford. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Maximum Performance: Thanks to an all-new generation of Morimoto Bi-LED projectors, the XB Evo Hybrid headlights will meet & exceed the highest standards for headlight performance that are set by the Insurance Institute for Highway Safety... which is a tough mark even for most modern luxury automakers. Here, the F-150 Evo Hybrid headlight utilizes the same Bi-LED projectors found in the higher end XB Evo model to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. All optics are powered by the latest OE-grade automotive LEDs from Nichia in Japan. On Road: The Morimoto XB Evo Hybrid Headlights meet all standards with FVMSS108 regulations for on-road use in the USA. Their projector optics are so capable and efficient that their LEDs are only driven at about 50% of their full potential intensity to avoid exceeding limitations set by compliance. The vertical aim is fully adjustable within +/- 6 degrees for a perfect alignment on any F-150, even with a lift. The system was designed in California by Morimoto’s lead optical engineer, Yoshi Ishida, to deliver maximum visibility, comfort, and safety, and that it does. Off Road: Yes, you read that correctly. Out of the box, XB Evo and XB Evo Hybrid are only producing a fraction of their potential intensity for compliance reasons. Want more light for your off-road adventures? The optional Supercharged Drivers boost both low and high beam intensity by 30-50% -- all without sacrificing reliability or warranty. It also adds the welcome sequence to the DRL and projectors that doesn't normally appear on the Hybrid version of the headlight. While the Supercharged drivers easily enable the XB Evo to outshine every other headlight for the F-150 on the market, we must reiterate that they will result in non-compliant levels of peak beam intensity, and therefore should not be used on public roads. DRL Optics: The turn signals and daytime running lights illuminate glass-like 3D optics with special surface textures, which enables maximum intensity from all viewing angles. Easily out-shining low-tech DRL optics found in most every other aftermarket headlight. DRL and Turn Signals: The daytime running light illuminates in a crisp clear white color that perfectly matches the LED projectors. Thanks to their impressive optics, the amber turn signals are also incredibly bright, and operate in a solid flashing pattern with an elegant fade-off effect. Sequential turn signals and Amber DRL settings are not available for the Hybrid version of the headlights. OE Fit & Installation: The XB Evo Hybrid headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free installation. They will bolt onto the original mounting points and line up to the surrounding sheet-metal without any massaging, and then plug into the factory wire harness and then work without errors on the dash, nor flickering, flashing, or radio interference. Thoughtfully engineered for a modification-free install. No factory warranties void. No headaches. Well-Built: This product is completely designed, engineered & tested in the USA by the Morimoto team to meet the high expectations of our customers. Nichia LEDs from Japan are used throughout. All wiring and connections are OE-grade. When it comes to UV protection, OE Toyota headlights are industry-best, which is why we've formulated a new hard coating that exceeds their 3,000-hour standard for resistance against cracking, fading, and yellowing lenses from UV exposure. The list goes on but as the saying goes: you get what you pay for. XB Evo Hybrid headlights aren't cheap, but they are built to a high standard and should easily last the life of your F-150! We’re proud to stand behind the product with an industry-leading five-year warranty. Tail Lights: Ford F-150: While every biz in the aftermarket has a catalog full of products for the 09-14 Ford F-150, somehow no brand has yet to deliver a worthy set of tail lights for this truck... until now. The Morimoto XB LED tail lights are the category killer that every F-150 owner has been waiting for! Reverse Lights: Are often over-looked, but not with the Morimoto XB tail lights for the F-150. While they come standard with powerful LED reverse lights, just wait, theres more! Morimoto's BLBB system allows you to plug n play with the optional LED Backup Boost Bar which mounts to the top of your license plate frame and provides an extra 2,700 lumens of controlled light output in reverse. Yeah, Morimoto customers like to see where they're going in reverse too! Style: Inspired by the design of the more modern OEM LED tail lights from later generation trucks, these look right at-home on the rear end of the 12th Gen. Two clusters of four 3D Optics are illuminated from the rear with integrated TIR optics, and serve as the brake light and turn signal. The parking light optic around the outer edge of the lights mirrors the OEM LED setup, and is equally impressive in the intensity department day or night. Pair that with the surrounding muscular trim, optional smoked or red outer lens, and we've easily got what is the best-looking set tail lights on the road for the 09-14 F-150s! Style and Safety: All Morimoto tail lights are designed to comply with all DOT, SAE regulations for rear-facing lamps. We pride ourselves on offering stylish, high-performance and safe products for serious enthusiasts, which is why all new Morimoto products are verified by trusted third party labs for compliance and are backed with an industry-leading five year warranty.
Tech Specs
Headlights: Traffic Pattern: LHD / Right Hand Traffic Only
Output (Standard Drivers): DOT / FVMSS108 Compliant (LB2V and UB2)
Output (Supercharged Drivers): +30-50% (Non-Compliant)
Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
Functions: Low Beam, High Beam, Parking Light, Turn Signal, and DRL
Turn Signal Mode: Instant-On / Fade-Off
DRL Color: White
DRL/Signal Optics: Glass-like 3D Optics
Internal Finish: Piano Black w/ contrasting textures
Side marker: Amber side reflex reflector (DOT compliant)
Headlights: Traffic Pattern: LHD Only
Input: Toyota Multi-Pin OEM
Functions: DRL (White), Turn, Parking, Low, High
Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic: Kuria Optic Bi-LED
UV Coating: Momentive UVHC3000
Tail Lights: Input: Toyota Multi-Pin OEM
Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source: SSC LED
Brake Light: Red (Bright)
What's Included

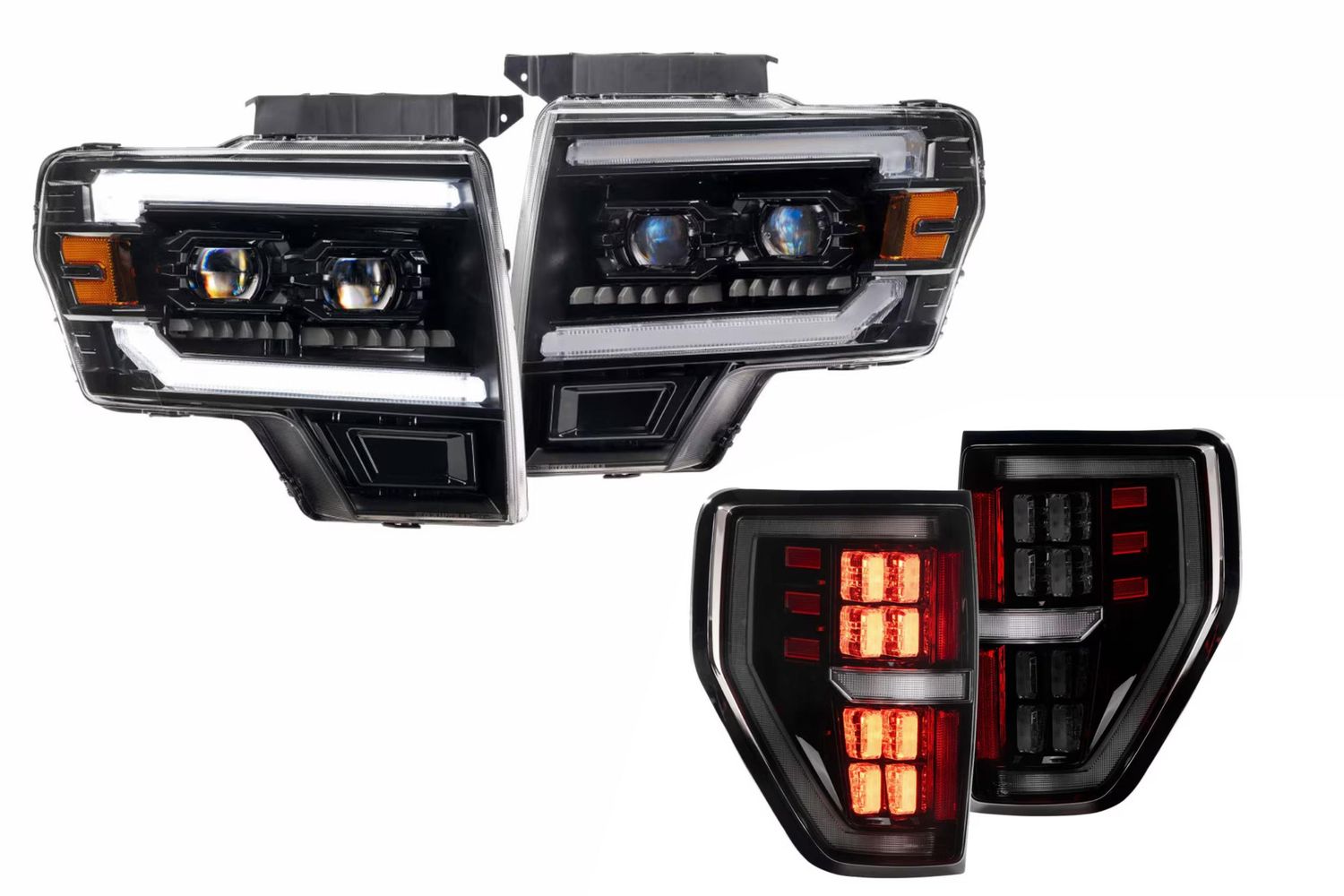

Headlights: XB Evo Hybrid Headlights: Ford F-150 (09-14 / Set)
Tail Lights: XB LED Tail Lights: Ford F-150 (09-14 / Smoked Lens / Set)
Compatibilities
Ford F-150: 2009-2014 (all trim levels, factory halogen & factory HID/xenon equipped models)
Ford SVT Raptor: 2010-2014
Trim Levels: XL, STX, XLT, FX2, FX4, Lariat, King Ranch, Platinum, SVT Raptor, Limited
Supercharged Drivers: LF2-DRVSC12 (Optional, sold separately)
Replaces Ford Part #: FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008EB, DL3Z13008EC, FR560B1A12SD6V, DL3Z13008DB, DL3Z13008FB, DL3Z13008BB, DL3Z13008CB
Note: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
Prop65 Warning
Yes
DOT Compliant
Yes
Install Guide
Download Install Guide
